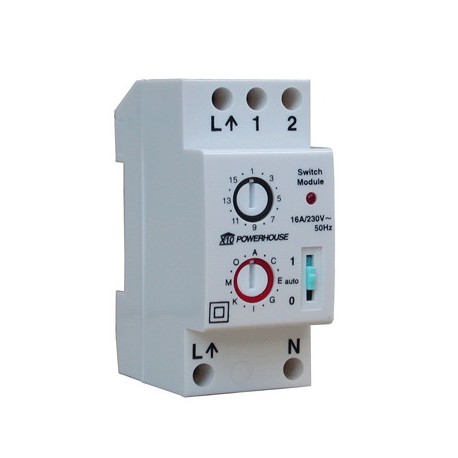

X10 AD10 Din-Rail Switch

AD10

Used

  • Switch for installation on DIN rail
  • On and Off control
  • Local control with (momentary action) switch
  • Switches loads up to 3600 Watt
  • Works with X10 controllers
  • Status indication with LED
  • Silent relay

More details

This product is no longer in stock

1 123 Kč

Add to wishlist

Data sheet

Supply voltage230 VAC (+10% -15%) / 50 Hz
Supply current≤ 20 mA capacitive
Making capacity2.000 W (low - voltage halogen lighting), 16 A (resistive loads), 3 A (inductive/capacitive load)
Responds to X-10 commandsOn, Off, All Units Off
Operating temperature-10°C to 50°C

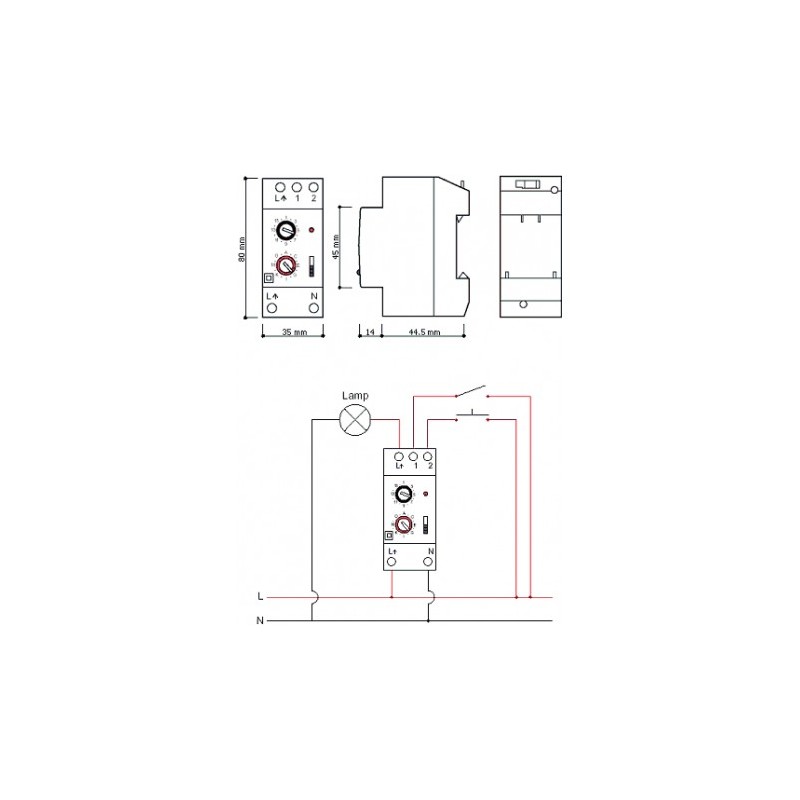

Dimensions51 x 80 x 65 mm
CertificationCE

More info

The X10 DIN rail switch AD11 is a remote controlled relay. Discretely installed at the junction box, it switches hard-wired circuits with several switches (e.g. hallway lighting). The internal relay can be tripped either by external latched or momentary action wall switches or by an X10 controller.

The AD11 responds to STANDARD X10 protocols: "All units off" from any X10 controller set to its House Code, regardless of unit code. Or alternatively, by individual unit control using "On" and "Off". When the relay is energized, the LED above the slide switch is illuminated.

SLIDE SWITCH

  • Position 0: the connected load is switched Off permanently and cannot be switched on by the wall switches or an X10 controller.
  • Position 1: the connected load is switched On permanently and cannot be switched off by the wall switches or an X10 controller.
  • Position auto: the connected load can be switched by the wall switches or an X10 controller.
  • Terminal 1 is designed for toggle switches: the relay picks up when phase is present and releases when there is no voltage at the terminal.
  • Terminal 2 is designed for pulse contacts: each time phase is applied to the relay switches.

In combination with a X10 Transceiver (TM12, CM15PRO, ...) you are now able to control your X10 Modules with any X10 Controller (UR24 , KR22 , SS13 , etc.). You can also control your X10 Modules with your Smartphone or Tablet by using the X10 TIP10RF.
