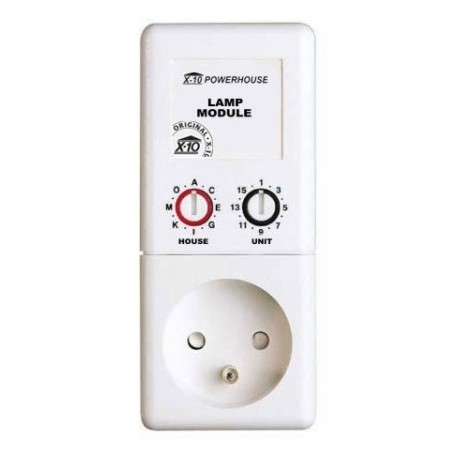

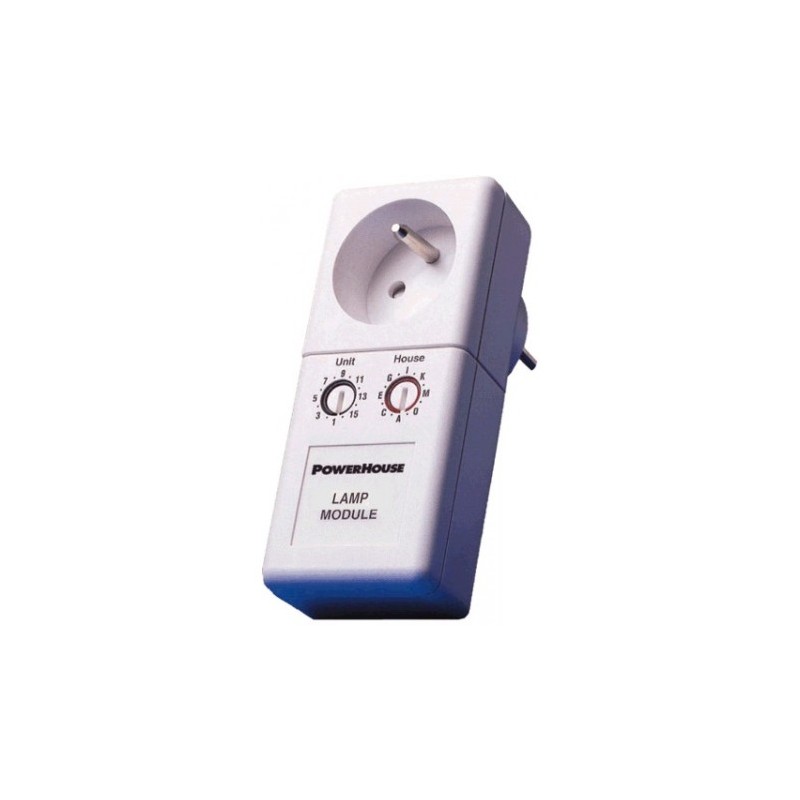

Sale! X10 LM12 Lamp Module View larger

X10 LM12 Lamp Module

LM12

New product

X10 Plug-in module LM12 for switching and dimming normal light bulbs up to 300W. Lights or appliances can be connected to the front of the module. The module responds to the X10 Commands ‘On’, ‘Dim, ‘Bright’, ‘All Lights On’, ‘Off’ and ‘All Off’. Controllable from a distance with X10 signal through the existing house wiring (On/Off/dim). The X10 LM12 is suitable for standard light bulbs.

More details

In stock

403 Kč

-150 Kč

553 Kč

Add to wishlist

Data sheet

Supply voltage230 VAC (+10% -15%) / 50 Hz
Supply current≤ 20 mA capacitive
Making capacity40 to 300 W (incandescent & 12 V halogen lamps only)
Regulating time4,4 sec (±0,2 sec) from fully On to Off
Responds to X-10 commandsOn, Off, Dim, Bright, All Lights On, All Units Off
Operating temperature-10°C to 50°C
Dimensions52 x 122 x 33 mm (without plug)
CertificationCE

More info

Simply plug the lamp into the X10 LM12 module and then plug the LM12 lamp module into your normal mains outlet socket. Set the code switches for the House code and the Unit number to suit the controller you are using and the module is ready to work.

In combination with a X10 Transceiver (TM12, CM15PRO, ...) you are now able to control your X10 Modules with any X10 Controller (UR24 , KR22 , SS13 , etc.). You can also control your X10 Modules with your Smartphone or Tablet by using the X10 TIP10RF.

The lamp may be switched on/off normally if it has its own switch or through the control console using a wall switch or remote controller.

The Lamp module also contains a dimmer that is controlled in the same way. 300 Watts max. (not suitable for fluorescent lamps).

Reviews

No customer reviews for the moment.

Write a review

X10 LM12 Lamp Module

X10 LM12 Lamp Module

X10 Plug-in module LM12 for switching and dimming normal light bulbs up to 300W. Lights or appliances can be connected to the front of the module. The module responds to the X10 Commands ‘On’, ‘Dim, ‘Bright’, ‘All Lights On’, ‘Off’ and ‘All Off’. Controllable from a distance with X10 signal through the existing house wiring (On/Off/dim). The X10 LM12 is suitable for standard light bulbs.
