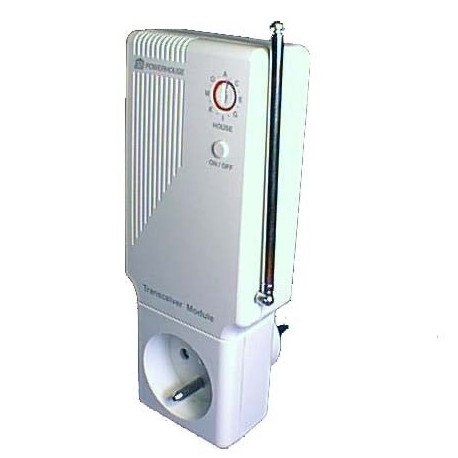

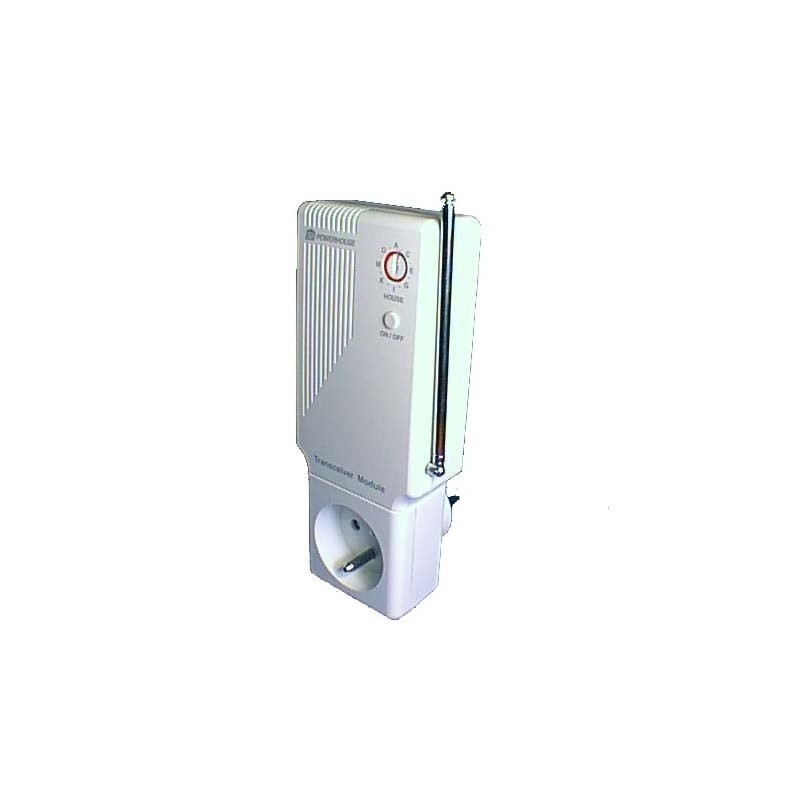

X10 TM12 Transceiver Module

Reference: TM12

Condition: New product

Controls up to sixteen different X10 modules
Built-in appliance module switched outlet
Compatible with all X10 wireless remotes

Data sheet

Supply voltage	230 VAC (+10% -15%) / 50 Hz
Supply current	≤ 20 mA capacitive
Making capacity	13 A
Transmits X-10 commands	On, Off, Dim, Bright, All units Off, All Lights On, All Lights Off, Status Request
Responds to X-10 commands	On, Off, Dim, Bright, All units Off, Status Request, RF commands
X-10 Powerline	1 impuls v 0°, 60° and 120° (120 kHz ± 2 kHz / 2.5 Vpk-pk)
RF frequency	433,92 MHz
RF range	15-30 m (through walls or ceiling) or 100 m in open space
Operating temperature	-10°C to 50°C
Dimensions	65 x 160 x 33 mm
Certification	CE

More info

The TM12 responds to wireless Radio Frequency (RF) signals from any X10 wireless remote controls or wireless wall switches. It re-transmits, over the house wiring, any signals it receives from these wireless remote controls or wall switches.

A built-in appliance switched outlet responds to X10 signals received on the power line or to RF signals received from any X10 wireless remote controls.

The TM12 responds to a serial control message in "STANDARD" X10 format : "All units off" from any X10 controller set to its house code regardless of unit code, or alternatively, by individual unit controller by "On" and "Off".

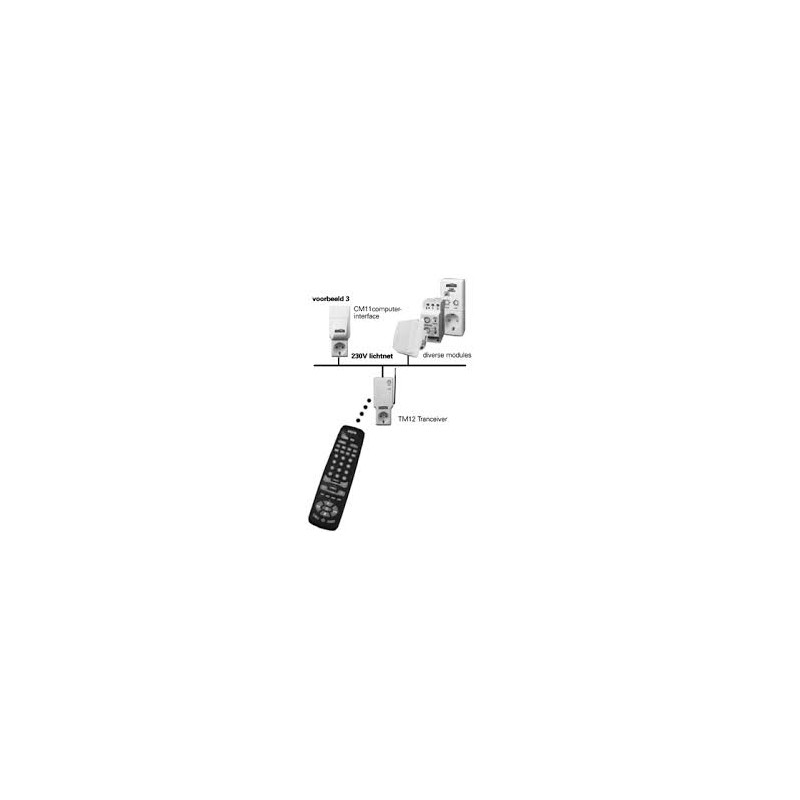

The TM12 can be polled for its status by the CM15 (two way universal computer interface) or by any controller using the PROFESSIONAL X10 format. When used with the CM11E interface, the TM12 acts as the "RF gateway" to get signals from any X10 wireless transmitter onto the AC wiring, to be received by the CM11E interface to initiate macros.

TYPICAL APPLICATIONS
This is the general purpose unit for the smallest to largest applications. It can be a starter kit with an X10 RF transmitter for remotely turning ON and OFF any appliance. Equally it can be the interface for multifunction macros.
