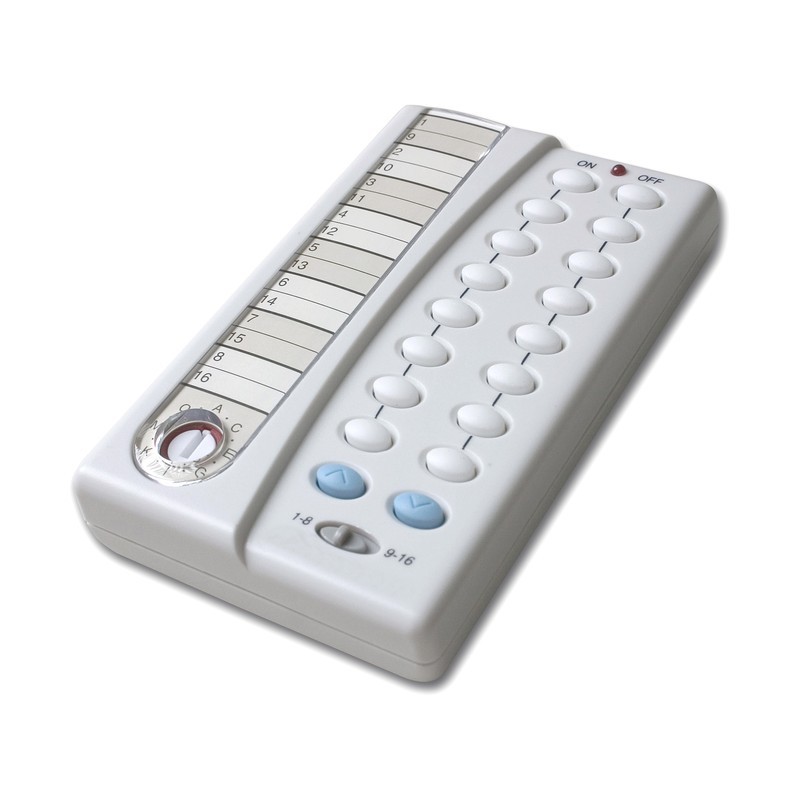

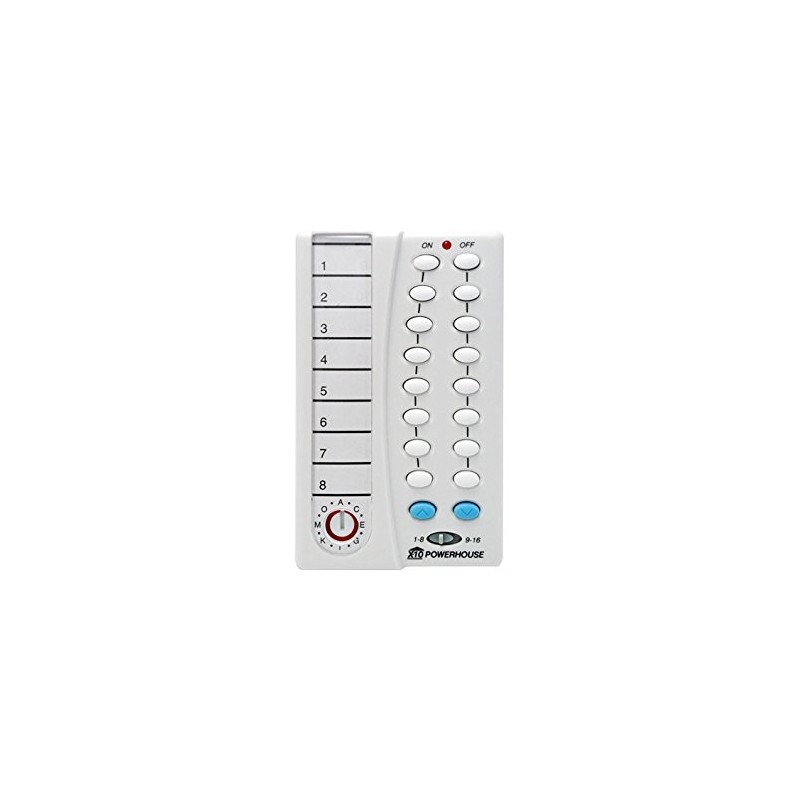

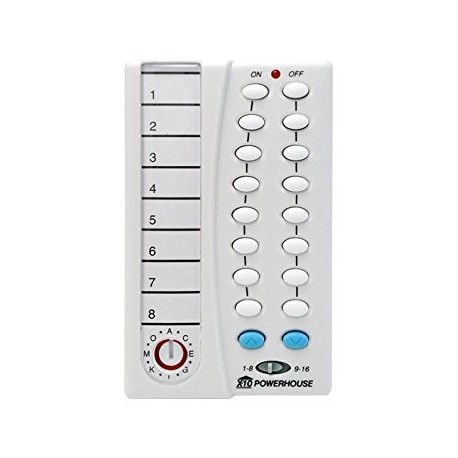

X10 HR10 Wireless Remote

Reference: HR10

Condition: New product

Comfort Remote control
Lets you control three X10 modules in your home with ON /OFF / BRIGHT / DIM.
Sends wireless RF signals to the X10 Transceiver module TM12, CM15 or to any X10 wireless security console
Compatible with the full range of X10 home automation products
Wireless operation up to 16 modules

More details

Notify me when available

Data sheet

Supply voltage	4x 1,5V AAA
Transmits X-10 commands	On, Off, Dim, Bright
RF frequency	433,92 MHz
RF range	15-30 m (through walls or ceiling) or 100 m in open space
Operating temperature	-10°C to 50°C
Dimensions	65 x 160 x 33 mm
Certification	CE

More info

HR10_light

The HR10 lets you control up to sixteen X10 modules (lights and appliances) remotely from anywhere inside or outside your home; even from your car as you enter your driveway.

You can turn on and off, bright and dim any X10 module set to the same house code as the HR10

A slide switch allows you to control modules set to house code 1 thru 8 and 9 thru 16.

The wireless remote control HR10 is normally used with the TM12, TM13, CM15, W800RFAE transceiver which passes through all codes from the wireless wall switches onto the powerline to control X10 modules. You can also use the wireless remote control HR10 with any X10 security system instead of the TM12.
