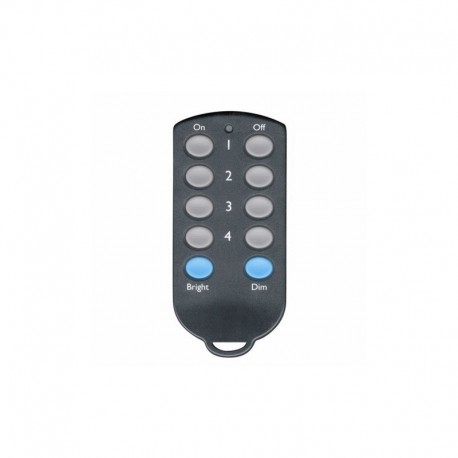

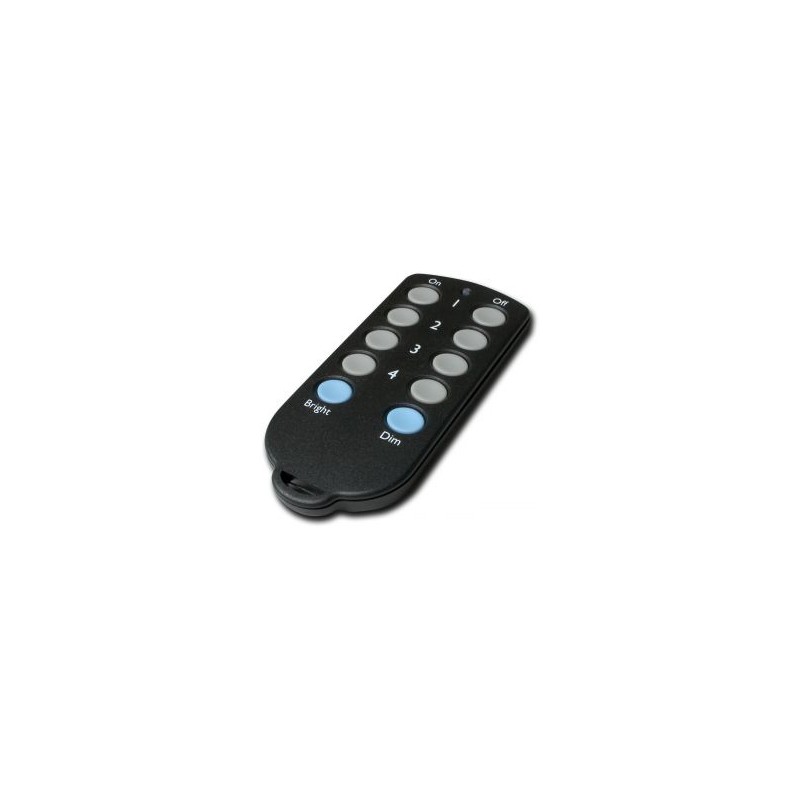

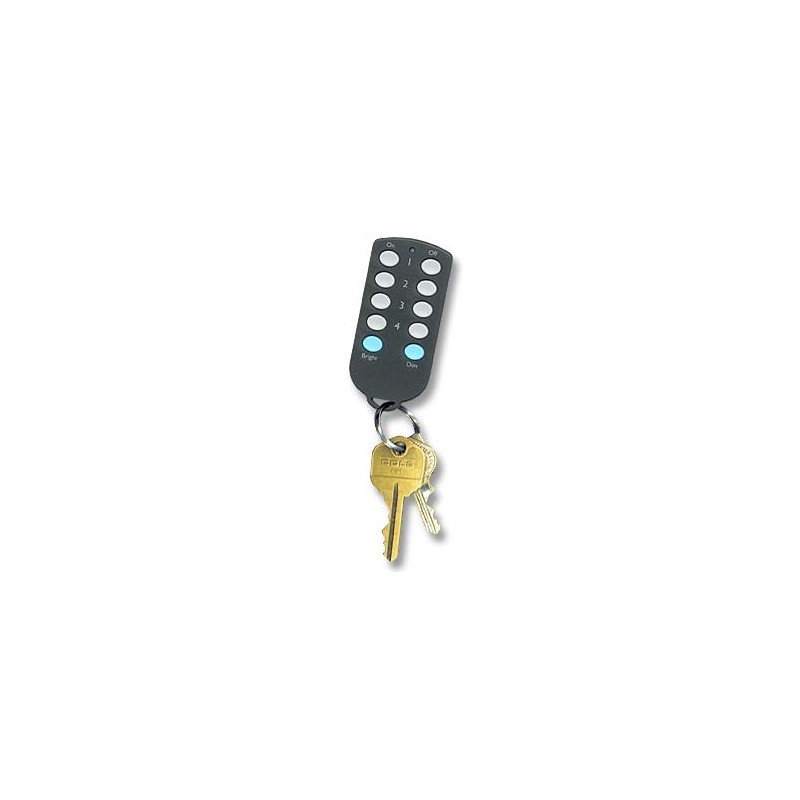

X10 KR22 Wireless Keychain Remote

Reference: KR22

Condition: New product

Slim elegant design.
Lets you control three X10 modules in your home with ON /OFF / BRIGHT / DIM.
Sends wireless RF signals to the X10 Transceiver module TM12, CM15 or to any X10 wireless security console
Compatible with the full range of X10 home automation products

More details

This product is no longer in stock

Notify me when available

Data sheet

Supply voltage	2x CR 2032,3 V lithium
Transmits X-10 commands	On, Off, Dim, Bright
RF frequency	433,92 MHz
RF range	15-30 m (through walls or ceiling) or 100 m in open space
Operating temperature	-10°C to 50°C
Dimensions	85 x 40 x 7 mm
Certification	CE

More info

KR22_light

The KR22 lets you control up to four X10 modules (lights and appliances) remotely from anywhere inside or outside your home; even from your car as you enter your driveway.

You can turn on and off, bright and dim any X10 module set to the same house code as the KR22

Its codes are preset to A1, A2, A3 and A4. You can change the house and unit codes easily with a simple key press sequence.

The wireless remote control HR10 is normally used with the TM12, TM13, CM15, W800RFAE transceiver which passes through all codes from the wireless wall switches onto the powerline to control X10 modules. You can also use the wireless remote control HR10 with any X10 security system instead of the TM12.

In conjunction with CM15, the KR22E is a 8 Macros controller
