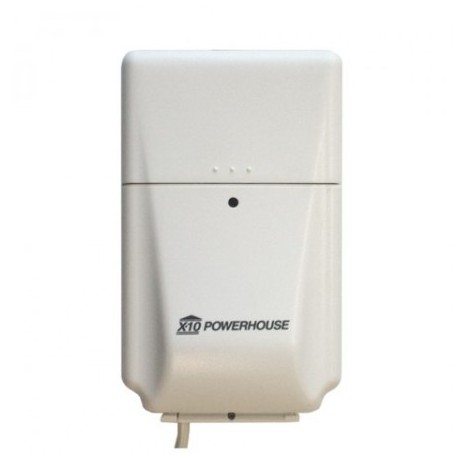

X10 XM10 Two-Way PLC Interface View larger

X10 XM10 Two-Way PLC Interface

XM10

New product

  • Designed to connect third–party hardware such as alarm controllers to X10
  • Compatible with eg. GE Interlogix, Aritech, Visonic, Caddx, Honeywell, ...
  • Develop your own X10 Compatible products or X10 Home Automation
  • It plugs into an AC outlet and connects to the OEM product via a telephone jack (not included)

More details

Add to wishlist

Data sheet

Supply voltage230 VAC (+10% -15%) / 50 Hz
Supply current≤ 30 mA capacitive
X-10 Powerline1 impuls v 0°, 60° and 120° (120 kHz ± 2 kHz / 2.5 Vpk-pk)
Operating temperature-10°C to 40°C
Dimensions67 x 114 x 45 mm
CertificationCE

More info

The XM10 Two-way PLC Interface has been designed for controller manufacturers to implement X10 PLC control.

The functionality of the PLC control is decided by the manufacturer and implemented in the controller panel.

The document « X10 protocol for OEM controller» defines the interface protocol that a manufacturer will need for implementing X10 control.

With a control panel which has been designed to interface with X10 PLC, the installation is simple. Just connect the flying lead to the 230V power supply, connect the telephone cable to both the RJ11 socket on the XM10 and the control panel with the cable provided.

There is a red LED lamp on the XM10 which is ON to indicate power. It will flash when X10 signals are being received or transmitted.

Reviews

No customer reviews for the moment.

Write a review

X10 XM10 Two-Way PLC Interface

X10 XM10 Two-Way PLC Interface

  • Designed to connect third–party hardware such as alarm controllers to X10
  • Compatible with eg. GE Interlogix, Aritech, Visonic, Caddx, Honeywell, ...
  • Develop your own X10 Compatible products or X10 Home Automation
  • It plugs into an AC outlet and connects to the OEM product via a telephone jack (not included)
