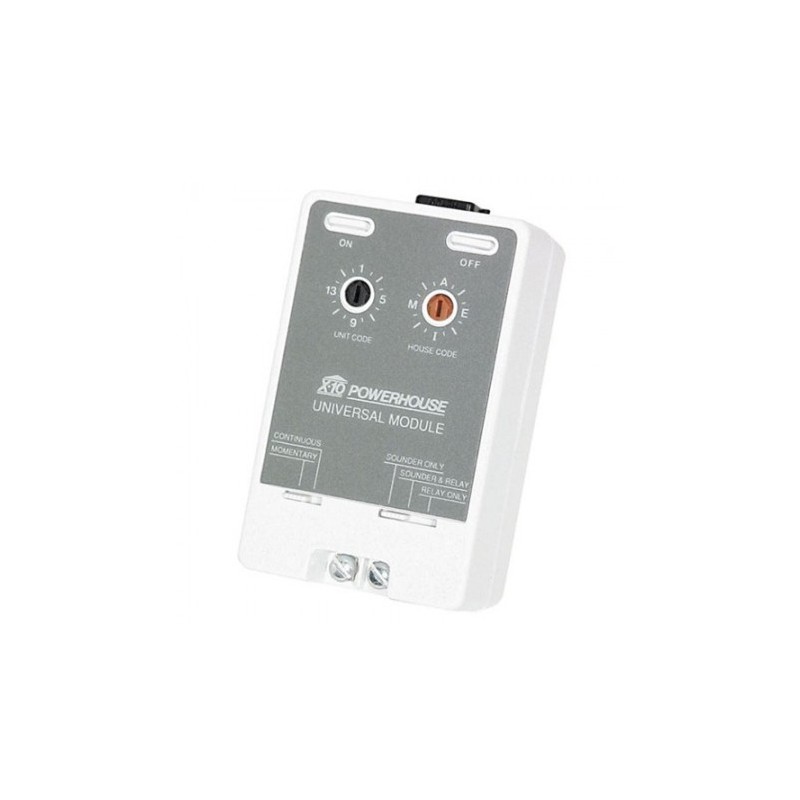

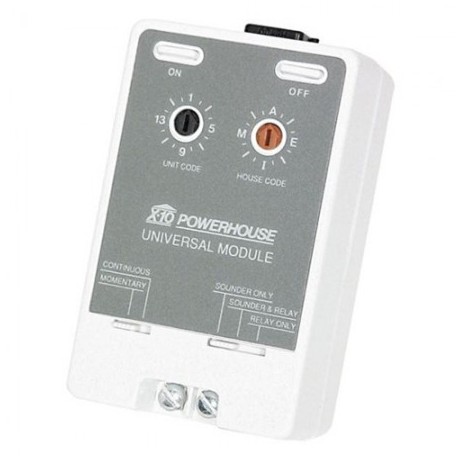

X10 UM7206 Universal module

Reference: UM7206

Condition: New product

Universal switch module
Switches 24V DC with power up to 5A
Transforms an X10 signal into a switch contact
Control your own low-voltage applications
Remote switching of your equipment
With built-in buzzer (can be switched Off)
Can be installed for pulse or continuous contact
Controllable from X10 commands On/Off
Controllable by hand with pushbuttons on the module itself

More details

This product is no longer in stock

Notify me when available

Data sheet

Supply voltage	230 VAC (+10% -15%) / 50 Hz
Supply current	≤ 20 mA capacitive
Making capacity	5 A at 24 VDC
Responds to X-10 commands	On, Off, All Units Off
Operating temperature	-10°C to 50°C
Dimensions	55 x 90 x 39 mm
Certification	CE

More info

The UM7206 contains an isolated contact relay and a piezo sounder (beeper). It can be set to operate as a beeper only, as an isolated contact relay only, or both. It can be set for momentary or continous operation for the sounder and/or isolated contact relay. The isolated contact relay is rated for 5 A at 24 VDC.

When set to continous operation the relay contacts and/or the module beeps continously when an ON command is received. When an OFF command is received the relay contacts open and/or the beeper stops.

When set for momentary operation the relay contacts close and/or the beeper gives three or four beeps when an ON command is received. The relay contacts then open automatically after about 0,5 second and/or the beeper stops automatically after three or four beeps. In this mode, OFF commands are ignored.

The module has a test ON button and a unit OFF button.
