X10 AW10 Wall Switch

Reference: AW10

Condition: New product

AW10 Switch to the wall is remotely controllable X10 module for lighting and other electrical . appliances up to 2,200 W. It can be used as a conventional switch. The module can also be controlled from several connected external switches ( stair diagram).

More details

In stock

Warning: Last items in stock!

Data sheet

Supply voltage	230 VAC (+10% -15%) / 50 Hz
Supply current	≤ 20 mA capacitive
Making capacity	2.000 W (incandescent lamps only), 10 A (resistive load)
Responds to X-10 commands	On, Off, All Units Off
Operating temperature	-10°C to 50°C
Dimensions	70 x 70 x 55 mm
Certification	CE

More info

The X10 AW10 Wall mounted light switch is a receiver module that is controlled by any X10 controller. It can be used like an ordinary switch.

The wall-mounted light switch simply replaces the normal light switch and is mounted into a flush box.

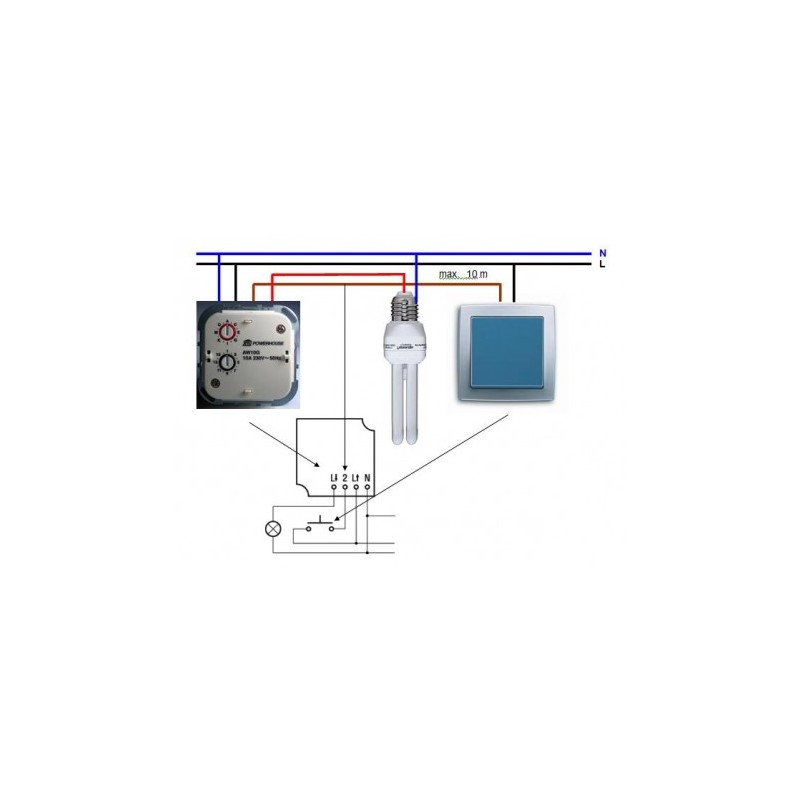

It can also be controlled by external momentary action switches connected to terminal 2.

In combination with a X10 Transceiver (TM12, CM15PRO, ...) you are now able to control your X10 Modules with any X10 Controller (UR24 , KR22 , SS13 , etc.). You can also control your X10 Modules with your Smartphone or Tablet by using the X10 TIP10RF.

The X10 AW10E responds to STANDARD X10 protocols: "All units off" from any X10 controller set to its house code, regardless of unit code. Or alternatively individual by unit controller using "On" and "Off".

Replaces any normal switch for X10 control of lighting (including fluorescent lighting) or appliances such as heater/fans, etc. rated up to 10A.

Works with X10 controller and momentary action wall switches - including "designer" wall switches. Can also be used like an ordinary switch.
